Sunjin Printed PET Film is a heat sealable printed PET film with a variety of patterns and colours.
It is suitable to make decorative metal sheet in combination with paint coating.
Sunjin Printed PET Film is considered the premier laminating material for metal decoration because of its
superior characteristics and recyclability.

* Characteristics
   - Environmentally friendly

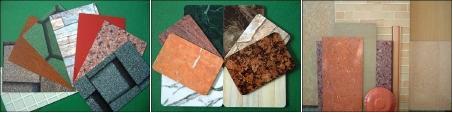

   - Unrestricted Expression of Various Pattern (Marble, Wood grain, Stone etc.)
   - Superior properties in hardness, chemical resistance, formability, adhesion and durability
   - Heat Sealable

* Type of Films

Type		Features	Application
High Glossy	SSS	* Gloss level, >120 & Clarity * Excellent printing texture	* Home Appliance * Interior building materials
Low Glossy	SSM	* Gloss level, 30	* Interior building materials
Medium Glossy	SSMT	* Gloss level, 60 * Excellent weather resistance	* Exterior building materials

* Typical Properties of Films

		High Glossy SSS	Low Glossy SSM	Medium Glossy SSMT
Tensile Strength (Kg/mm²)	MD	20	17	18
Tensile Strength (Kg/mm²)	TD	22	21	20
Elongation(%)	MD	160	150	140
Elongation(%)	TD	130	105	120
Heat Shrinkage (%) (150 ^oCx 30 min.)	MD	-2.0	-2.8	-2.0
Heat Shrinkage (%) (150 ^oCx 30 min.)	TD	-0.5	-0.5	-0.5
Gloss (%)		160	30	65
Adhesion Strength		◎ (Film tear)
Chemical Resistance		◎
Stain Resistance		◎
Weather Resistance (QUV test) (No remarkable change and fading of colour and gloss)		300 Hrs		1,500 Hrs

The above mentioned values are representative values and not warranty values.

* Availability

Thickness	Widteh	Length/Roll
20,25,30 um	800 ~ 1,250 mm	1,000 ~ 5,000 mm
